AT-102 ECG with Interpretation and Memory (for Resting ECG), Full-page 8.5 in x 11in printout with built-in ECG waveform display and VGA Output port. Upgradeable to PFT and Stress.

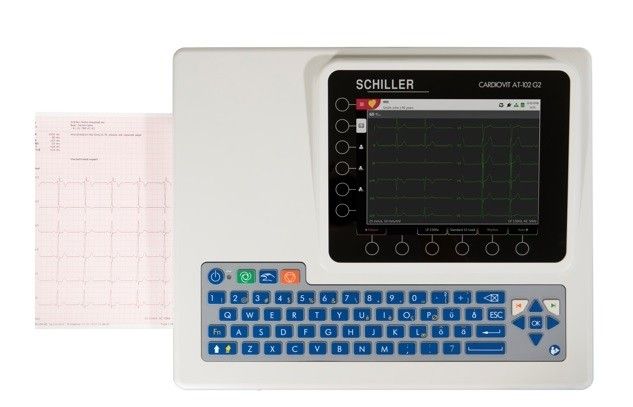

The CARDIOVIT AT-102 is an expandable resting ECG system which is particularly suitable for routine use in the practice, clinic or in emergency medicine due to its intuitive and easy operation with direct function keys.
By means of optional software, the system can very easily be upgraded to an ergometry or spirometry measuring station. Moreover, the CARDIOVIT AT-102 can be integrated in a hospital information system (HIS) from which work lists for planned ECG recordings can be downloaded to the CARDIOVIT AT-102. Mobile operation is ensured by the integrated accumulator anytime and anywhere
The integrated high resolution A4 real time printer guarantees long-term storing of ECG recordings in archive
quality; thanks to the automatic paper feed, printing is now even easier.Fiddling with thermal paper is a thing of the past

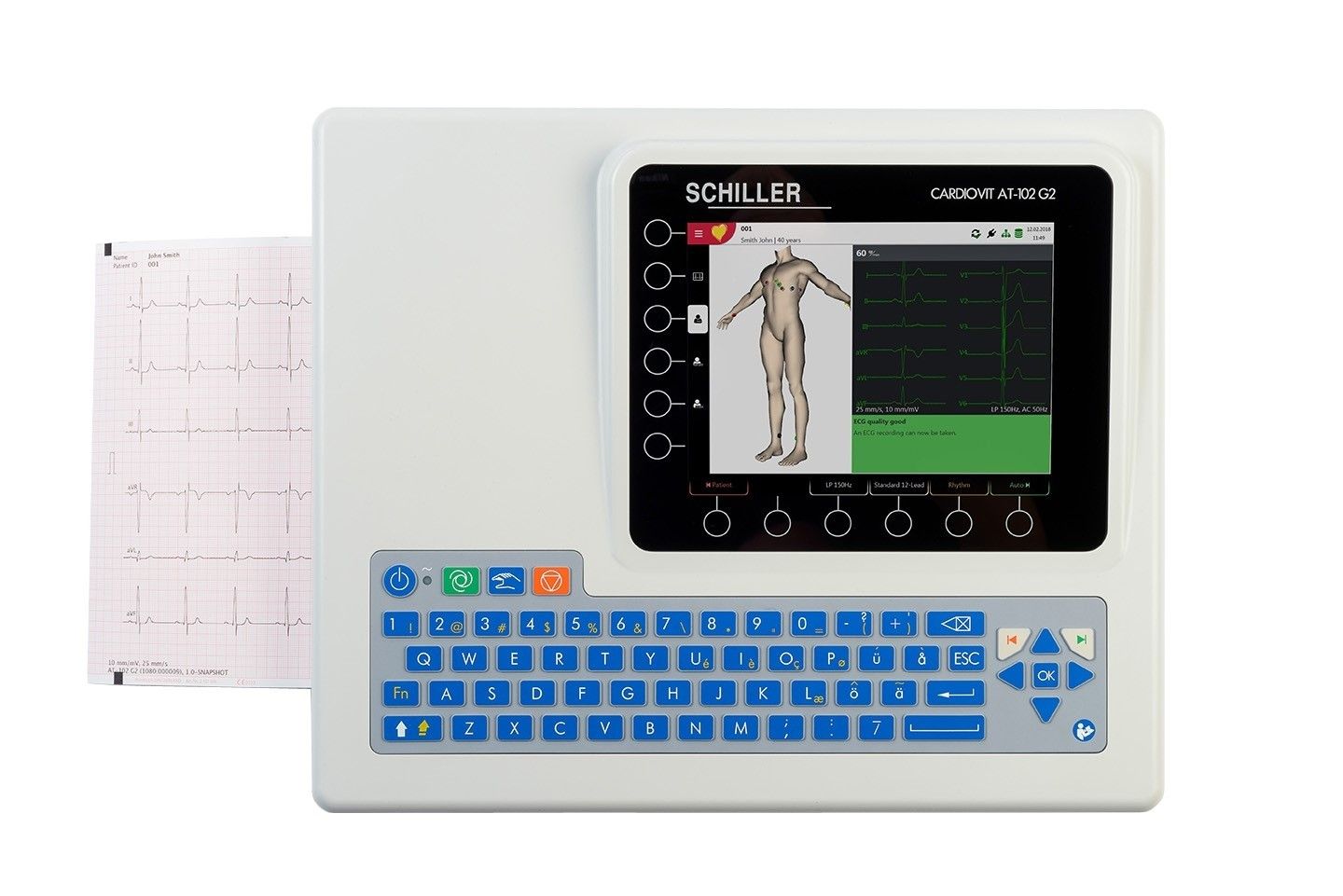

On the CARDIOVIT AT-102›s brilliant graphic display, all 12 ECG leads can be displayed in freely selectable sequences of 3, 6 or 12. Furthermore, an external LCD screen can be connected to the CARDIOVIT AT-102 (optional)
Features
10 leadwire/12 lead simultaneous acquisition with programmable lead configuration
Fully automatic
Microprocessor controlled
6-Channel Resting ECG
115VAC and battery operated
Built-in LCD
Built-in RS-232 interface for data transfer to SEMA 200 (with Serial cable)
Printout on standard paper external printer (if printer is connected)
Printout on internal thermal printer for real-time manual mode
Memory option for approximately 40 ECG/Spirometry recordings*
12 simultaneous standard leads
Pace maker detection
High-resolution thermal printer
3-Channel ECG high-resolution LCD 120 x 90 mm display area
Alphanumeric keyboard with rubber keys
Battery lasts for up to 300 recordings
Printout on 8½” x 11” chart paper
6/12-Channel printout formats
Operating manual
Filter: Myogram filter (muscle tremor filter): 25 Hz or 35 Hz, can be switched on/off (SCHILLER Power line Filter SPF, SCHILLER Baseline Stabilizer SBS , SCHILLER Smoothing Filter SSF)
Requirements for Data Output to EMR systems (using SEMA):
Memory Option (5.080003)
SEMA Light (9.610100), SEMA Light w/PDF Output (9.610100P) or SEMA Standard w/PDF Output (5.610000)
via Serial Port (Requires Serial Cable, Part No. 2.310094)
via WLAN, Wireless LAN and/or Modem (Requires SCM Module, Part No. 5.070007, 5.070010 or 5.070009)
